Self-Loading Portable Electric Stacker | 1 Ton Rack Lifting | Vehicle-Carry Mini Forklift

Customization Options
  1.  load capacity
  2. Lifting height customization

  3. Fork length & width customization

  4. Battery capacity upgrade

  5. Color customization

  6. Wheel material options: PU / Nylon / Reinforced

  7. OEM logo printing

  1. Truck & van mobile delivery

  2. Warehouses and distribution centers

  3. Workshops and manufacturing plants

  4. Construction and renovation sites

  5. Retail stores and hardware shops

  6. Last-mile logistics operations

  7. On-site lifting and material handling

This self-loading portable electric stacker is designed for users who need a compact lifting solution that travels with their vehicle and can be quickly deployed onsite. Equipped with remote lifting control, operators can easily and safely lift or lower loads from a distance, enhancing convenience and safety during operation.

It features a reliable rack-and-pinion lifting system, reinforced steel structure, multifunctional control panel, durable polyurethane wheels, and a waterproof charging port. This stacker is ideal for mobile delivery, warehouses, workshops, construction sites, and various material handling tasks requiring flexibility and mobility.

📌 Key Advantages

  • Continuous endurance supports up to 200 lifting cycles per charge.
  • Self-loading & portable design — easily loads/unloads with the vehicle and works anywhere.

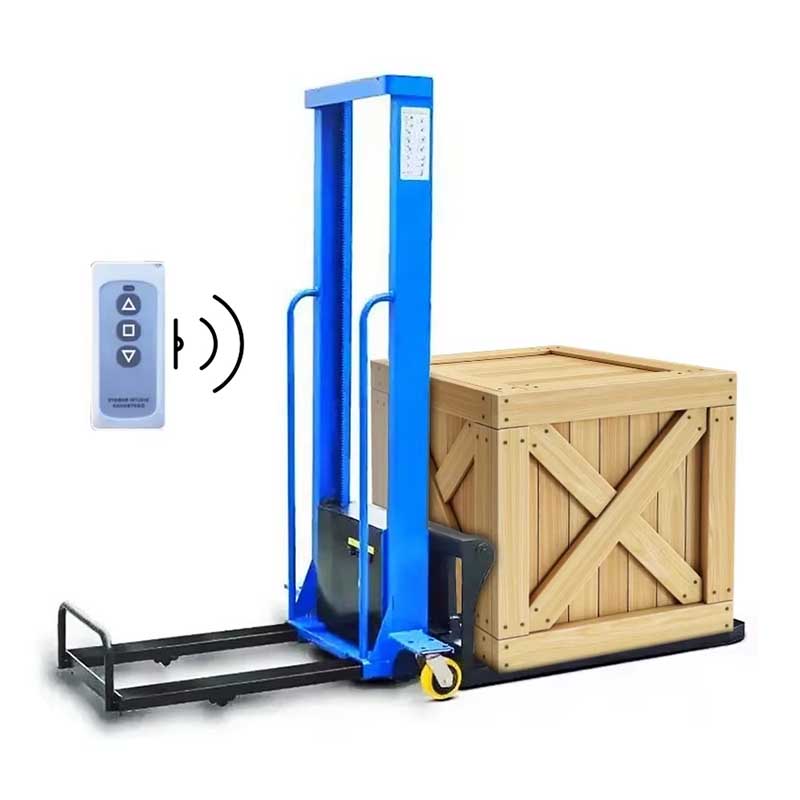

  • Remote lifting control — allows easy, safe, and convenient operation from a distance.
  • 1-ton load capacity — suitable for pallets, equipment, and general cargo handling.
  • Rack-and-pinion lifting system — smooth lifting, stable structure, and no hydraulic oil leakage.
  • Compact steel body — perfect for narrow spaces and mobile work environments.
  • Multifunctional control panel with power switch, battery indicator, up/down buttons, and protected charging port.
  • Waterproof charging port for safe and convenient charging in outdoor conditions.
  • Reinforced polyurethane wheels provide high wear resistance and smooth movement on various floor types.
  • Thickened one-piece forks ensure strong load-bearing capability and stable operation.
  • Highly maneuverable with reinforced wheels and smooth steering.
  • Maintenance-friendly design with easy access to key components.

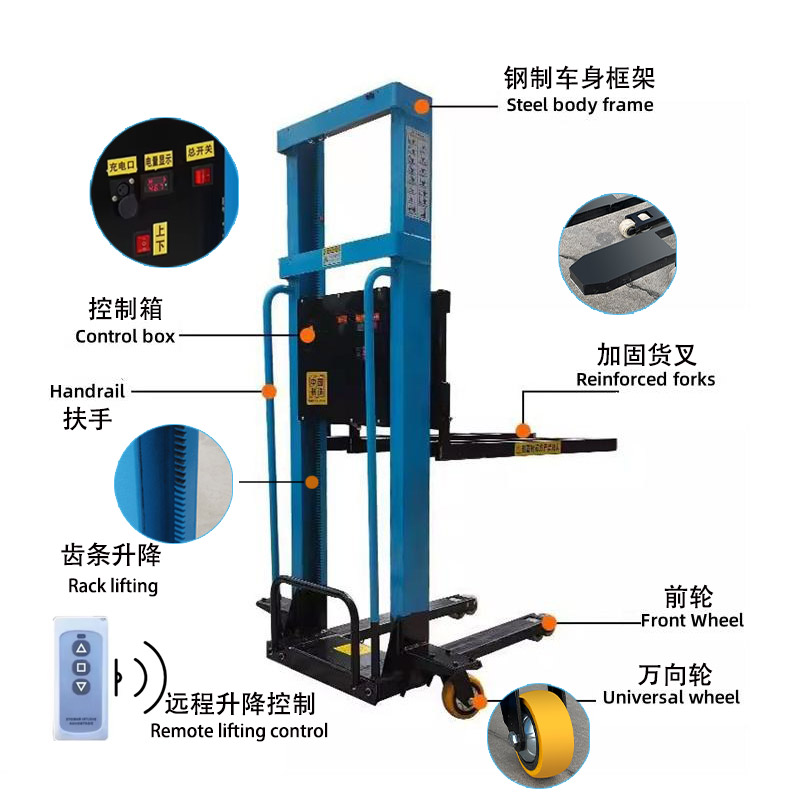

Self-Loading Portable Stacker details

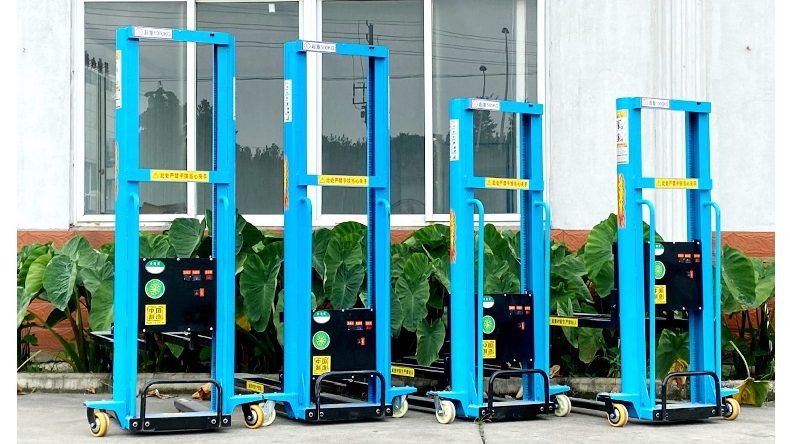

multi-siz Self-Loading Portable Stacker

Related Products

Parameter Item参数项 Parameter Value参数值
Rated Load Capacity额定负载能力 1000 kg
Overall Width整体宽度 920 mm
Standard Lifting Height标准起重高度 1600 mm
Overall Height整体高度 2100 mm
Fork Length货叉长度 1150 mm
Fork Width分叉宽度 560 mm
Fork Inner Width前叉内宽 250 mm
Ground Clearance (Body)离地间隙(车身) 85 mm
Ground Clearance (Fork)离地间隙(前叉) 50 mm
Battery Type & Capacity电池类型与容量 48V 12Ah
Continuous Working Time连续工作时间 Up to 200 lifting cycles
Net Weight净重 238 kg
