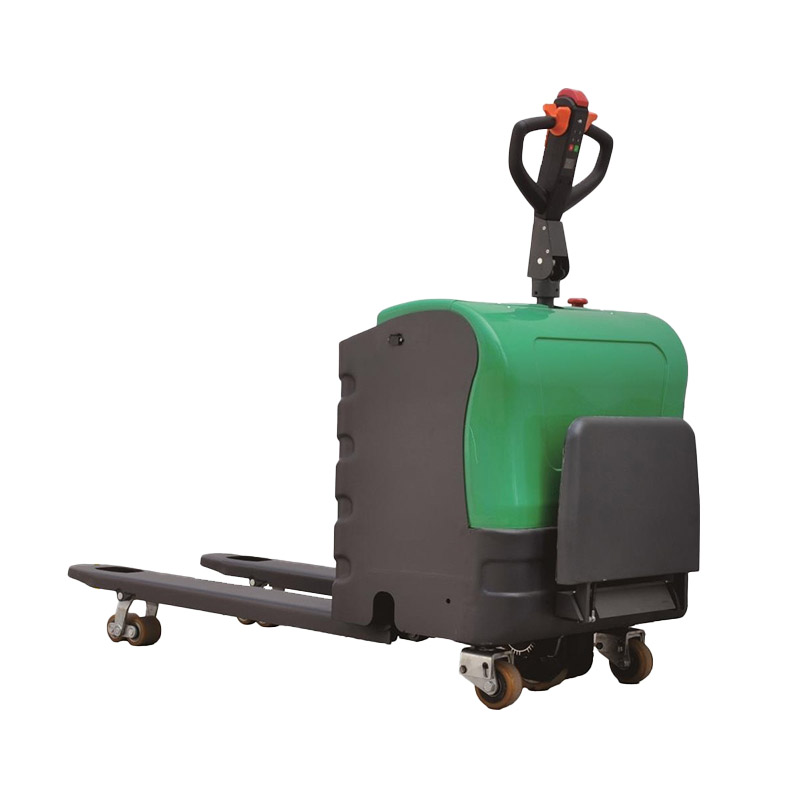

2.0–3.0 Ton Electric Stand-On Pallet Truck | Warehouse Material Handling Solution

Applications

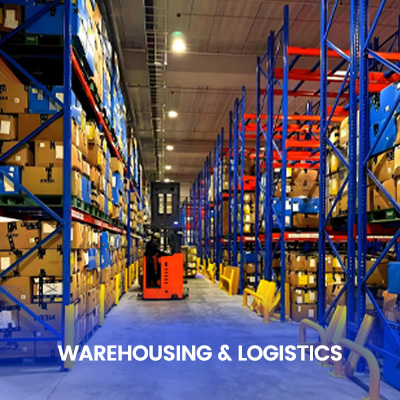

  1. Warehouses and distribution centers

  2. Manufacturing and assembly workshops

  3. Supermarkets and retail storage areas

  4. Logistics and freight companies

  5. Loading and unloading operations at docks

  6. Cold storage and food processing plants

  1. Load capacity: 2000kg, 2500kg, 3000kg

  2. Fork dimensions (length and width)

  3. Battery type and capacity (standard or extended working hours)

  4. Wheel material (PU, rubber, or customized)

  5. Driving platform design (fixed or foldable)

  6. Color and branding customization

The 2.0–3.0 Ton Electric Stand-On Pallet Truck is designed for high-efficiency material handling in warehouses, factories, and logistics centers. Powered by a durable battery system, it delivers continuous operation for 5–6 hours on a single charge. The stand-on driving platform provides comfort for long shifts, while the hydraulic steering system ensures smooth and effortless control.

This pallet truck features a high-capacity battery, anti-slip braking function, and low center of gravity for maximum stability and safety. Maintenance-free AC motors reduce operating costs, and the foldable driving platform improves maneuverability in narrow spaces. With a rated load of 2000kg–3000kg and compact design, it is the perfect solution for handling heavy pallets in demanding environments.

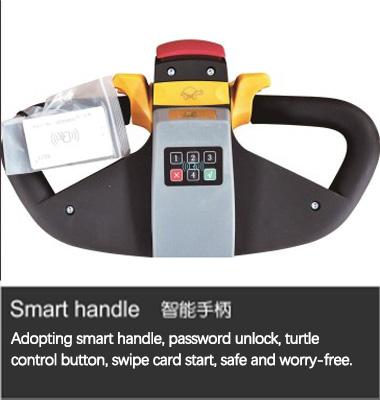

Electric Handling equipment Smart handle

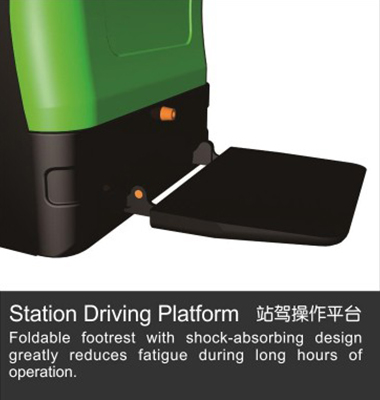

Electric Pallet Truck Station Driving Platform

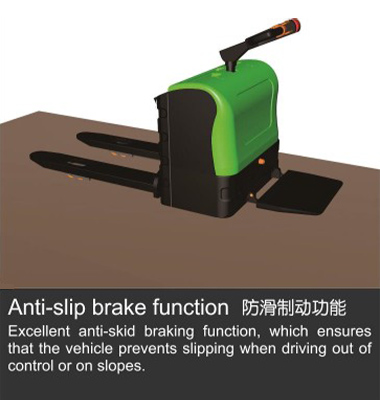

Electric Pallet Truck Anti-slip brake function

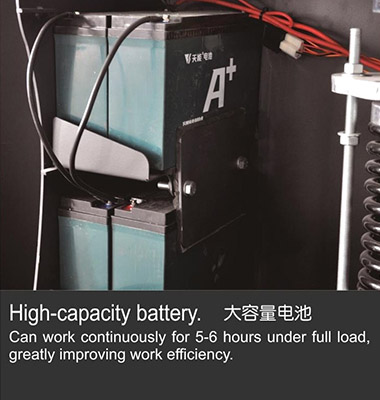

Electric Pallet Truck High-capacity battery

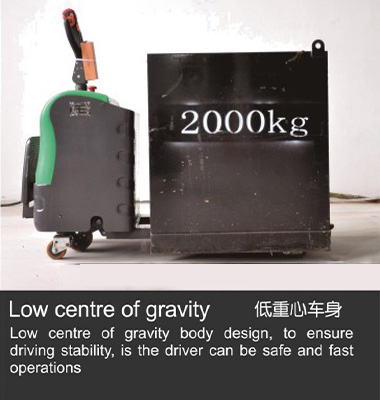

Electric Pallet Truck Low centre of gravity

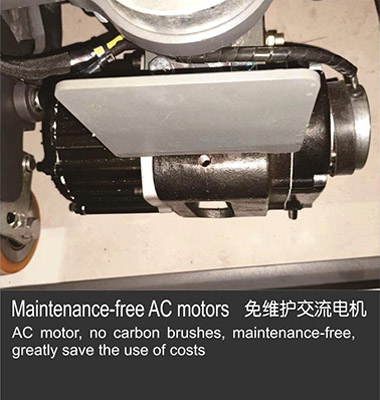

Electric Pallet Truck Maintenance-freeAC motors

Related Products

Parameter Item (参数项) Parameter Value (参数值)
Power Type – 动力形式 蓄电池 Battery-powered
Driving Style – 驾驶方式 Stand-on
Rated Load – 额定载荷 2000kg、3000kg
Load Center – 载荷中心距 600mm
Steering System – 转向系统 液压助力 Hydraulic Power Steering

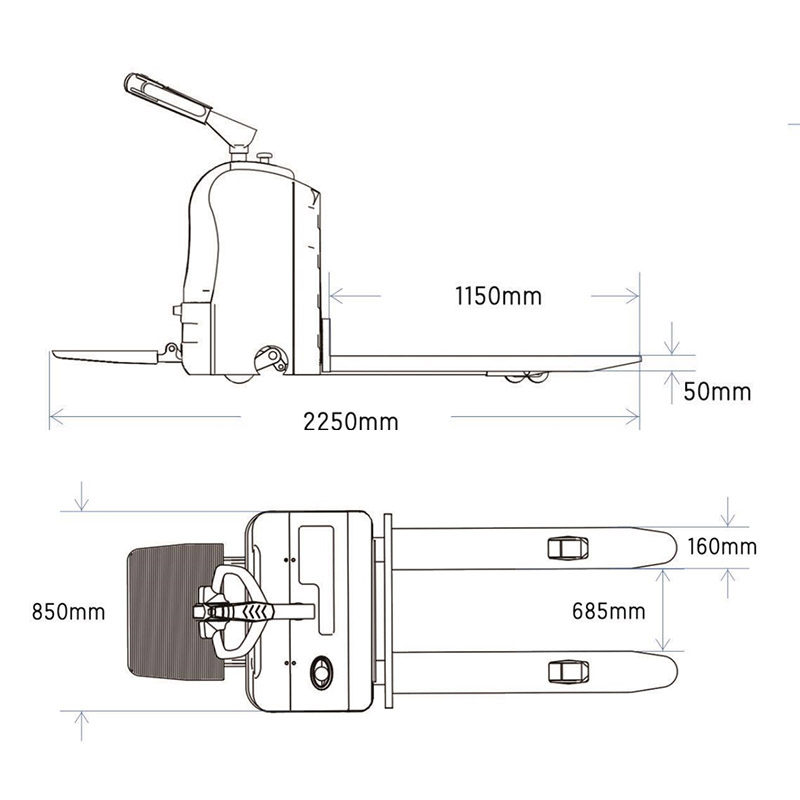

Overall Length – 整车长度 2250mm
Overall Width – 整车宽度 850mm
Max. distance between forks – 货叉最大间距 685mm
Fork Dimension – 货叉尺寸 50mm×160mm×1150mm
Max. lifting height – 最大提升高度 190mm
Fork Min. ground clearance – 货叉最小离地高度 30mm
Driver Motor – 驱动电机功率 0.8kw
Lift Motor – 提升电机功率 2.2kw
Service Brake – 行车制动 电磁制动 Electromagnetic brake
Max Climb Capability – 最大爬坡能力 8%
Travel Speed – 行驶速度 5km/h
Lift speed without load – 提升速度(空载) 230mm/s
Lift speed with load – 提升速度(满载) 190mm/s
Turning Radius – 转弯半径 1820mm
Wheel material – 轮子材质 聚氨酯 PU
Drive wheel size – 驱动轮尺寸 φ160*50mm
Load bearing wheel size – 承重轮尺寸 φ80*70mm
Balancing wheel size – 平衡轮尺寸 φ115*55mm
Battery Capacity – 电池容量 32AH
Input Voltage – 输入电压 48V
