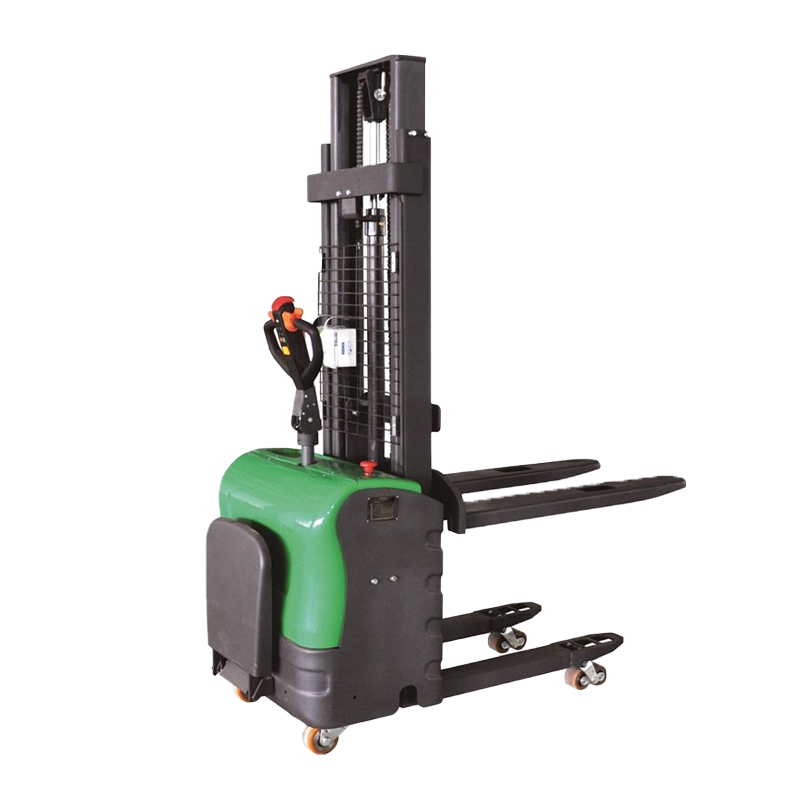

The 1.5 Ton Electric Dual Lift Stacker Truck combines efficiency, safety, and durability. Its advanced design ensures smooth handling in warehouses, factories, and logistics centers.
Key Features:
- Long-lasting performance – Equipped with a high-capacity battery, supporting 4–6 hours of continuous operation.
- Dual-lift design – The truck body can be lifted up to 100mm, allowing it to easily pass over ramps and uneven ground.
- Reliable control – Hydraulic power steering and high-precision lifting cylinder guarantee stability and prevent oil leakage.
- Strong construction – Reinforced H-beam gantry and composite lifting chains ensure durability and safety.
- Operator-friendly – A smart handle with integrated controls makes operation simple, ergonomic, and secure.
- High capacity – Rated load of 1500kg with a maximum lifting height of 3000mm, suitable for heavy-duty stacking tasks.
Related Products
Related Articles

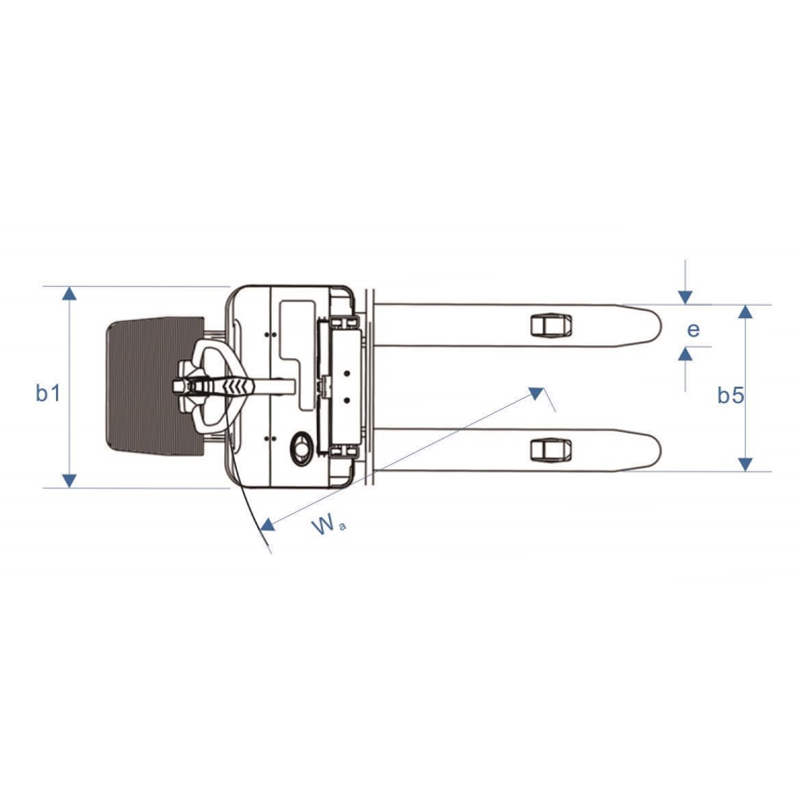

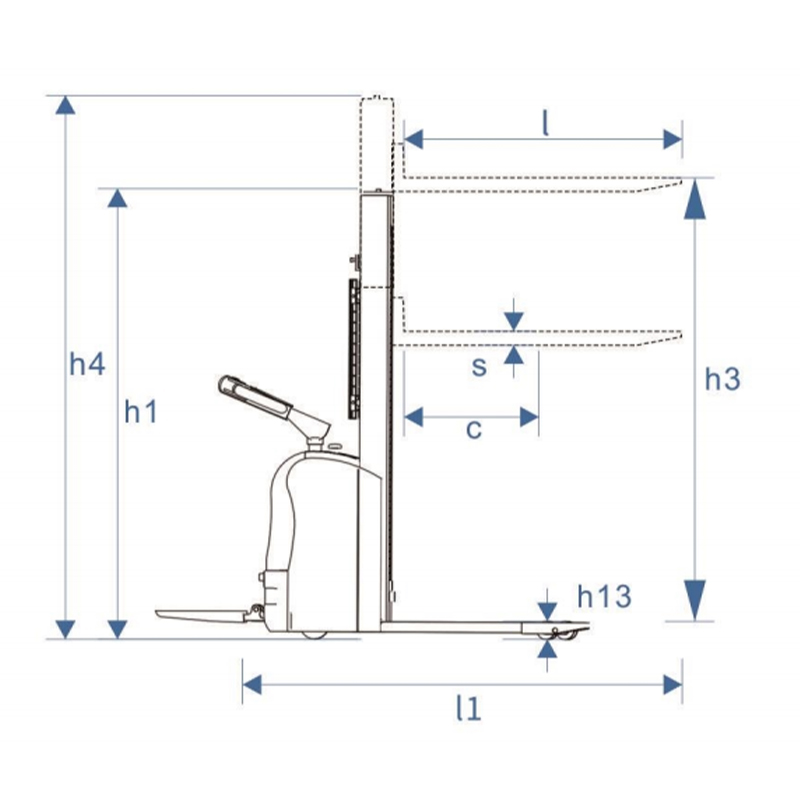

| Parameter Item (参数项) |
Parameter Value (参数值) |
| Power Type – 动力形式 |
Battery-powered |
| Rated Load – 额定载荷 |
1500kg |
| Load Center – 载荷中心距 |
600mm |
| Steering System – 转向系统 |
Hydraulic Power Steering |
| Overall Length – 整车长度 |
2250mm |
| Overall Width – 整车宽度 |
850mm |
| Min. height with closed mast – 门架不起升高度 |
2000mm |
| Max. distance between forks – 货叉最大间距 |
685mm |
| Max. lifting height – 最大提升高度 |
3000mm |
| Fork Min. ground clearance – 货叉最小离地高度 |
100mm |
| Max. height when most lifting – 最大工作高度 |
110mm |
| Body lifting height – 车身起升高度 |
3460mm |
| Driver Motor – 驱动电机功率 |
0.8kw |
| Lift Motor – 提升电机功率 |
2.2kw |
| Service Brake – 行车制动 |
Electromagnetic brake |
| Max Climb Capability – 最大爬坡能力 |
8% |
| Travel Speed – 行驶速度 |
5km/h |
| Lift speed without load – 提升速度（空载） |
230mm/s |
| Lift speed with load – 提升速度（满载） |
180mm/s |
| Turning Radius – 转弯半径 |
1820mm |
| Wheel material – 轮子材质 |
PU |
| Drive wheel size – 驱动轮尺寸 |
φ160*50mm |
| Load bearing wheel size – 承重轮尺寸 |
φ80*70mm |
| Balancing wheel size – 平衡轮尺寸 |
φ115*55mm |
| Service weight including battery – 电瓶自重 |
560kg |
| Battery Capacity – 电池容量 |
32AH |
| Input Voltage – 输入电压 |
48V |
Remark: Parameters are based on 3M duplex standard mast.
