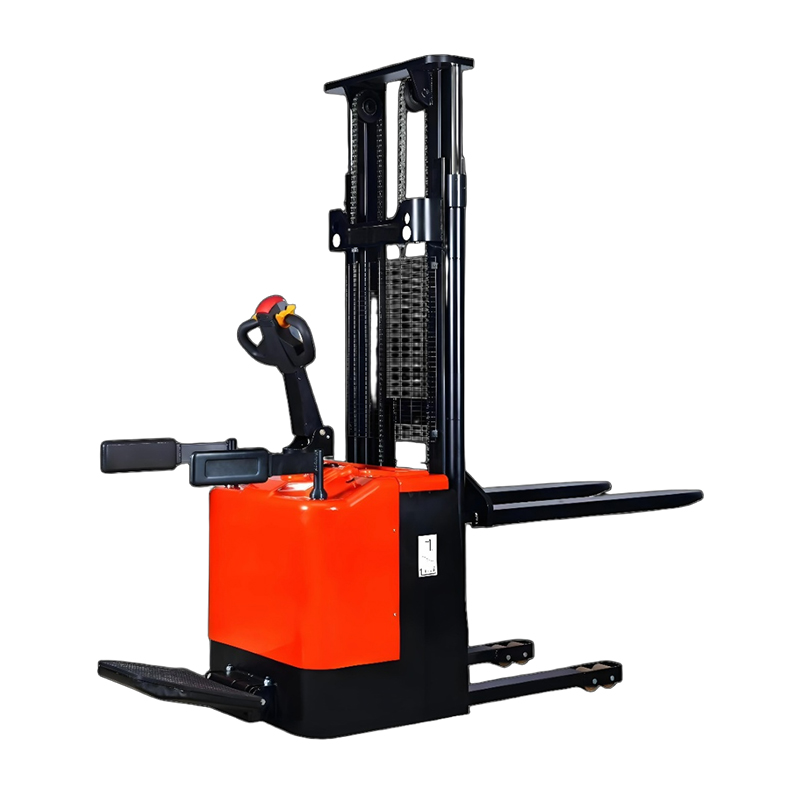

Fully Electric Stacker – 2000kg Load Capacity – Warehouse Efficiency Solution

Customization Options
  1. Lifting Height: Available from 1.6m up to 5m
  2. Load Capacity: 500kg – 3000kg
  3. Fork Size: Length and width can be customized to fit different pallets
  4. Battery Type: Lead-acid or Lithium battery options
  5. Wheel Material: Nylon, PU, or Rubber wheels for different floor conditions
  6. Operation Mode: Fully electric or Semi-electric
  7. Special Requirements: Cold storage design, Explosion-proof type, Protective overhead guard, etc.

All-electric stackers are suitable for short- to medium-distance handling and high-level stacking, especially in warehouses, factories, retail distribution, cold chain logistics, and other environments that require efficiency, safety, and environmental protection.

Fully electric stacker, electric travel, electric lifting, easy to operate, quiet and environmentally friendly!

1. Key Features

  • 🔋 High-Efficiency Lithium Battery: 8-hour runtime, fast charging support
  • 🌱 Eco-Friendly: Zero emissions, low energy consumption
  • 🔊 Low Noise Design: Suitable for indoor operations
  • 🎮 Ergonomic Control: Human-centered handle design
  • 🛡️ Safety Assurance: Overload protection, emergency stop function

2. FAQ

  • Q: How long does charging take?
    A: Full charge in 6 hours, 80% in 1 hour with fast charging
  • Q: Is it suitable for outdoor use?
    A: Suitable for smooth hard surfaces, but indoor use recommended for longer lifespan
  • Q: What’s the maintenance schedule?
    A: Basic maintenance recommended every 250 operating hours

3. Related Products

Parameter (English / 中文) Value Unit
Load Capacity (载重能力) 2000 kg
Lifting Height (起升高度) 3000 mm
Free Lift Height (自由提升高度) 200 mm
Self Weight (自重) 650 kg
Battery Type (电池类型) Lithium-ion
Battery Capacity (电池容量) 24V/280Ah
Driving Speed (行驶速度) 5 km/h
Lifting Speed (起升速度) 0.16 m/s
Lowering Speed (下降速度) 0.18 m/s
Minimum Turning Radius (最小转弯半径) 1800 mm
Wheel Type (轮胎类型) Polyurethane
Control Type (控制方式) Stand-on
Application (适用场景) Warehouse, Factory
Fork Dimension (货叉尺寸) 1000×150×50 mm (L×W×T)
Fork Width Adjustment (货叉调节宽度) 200 – 700 mm
Overall Dimension (L×W×H) (整车尺寸 长 × 宽 × 高) 1950×800×2050 mm
