Electric Pallet Trucks (1.5–2.0 Ton) Handling Equipment for Warehouses

Applications
  1. Warehouses & Logistics Centers – Efficient pallet transport in high-volume operations.

  2. Retail & Supermarkets – Quick restocking and easy movement of goods.

  3. Manufacturing Plants – Reliable equipment for moving raw materials and finished products.

  4. Distribution & Transportation – Improves loading and unloading efficiency.

电动托盘搬运车广泛应用于 仓库、物流中心、超市、生产车间和运输配送 等多种场景,是提升 仓储物流效率 的关键设备。

  1. Fork Length & Width – Customized sizes to fit different pallets.

  2. Battery Capacity – Optional high-capacity batteries for extended working hours.

  3. Wheels – PU or rubber wheels for various ground conditions.

  4. Color & Branding – Custom body color and logo for brand recognition.

  5. Load Capacity Range – Different tonnage options available for specific industry needs.

我们提供多种 定制化选项,包括 货叉尺寸、电池容量、轮胎材质、车身颜色与品牌标识、载重量范围,以满足不同客户的个性化需求。

1. Dual – Drive Power for Heavy Loads

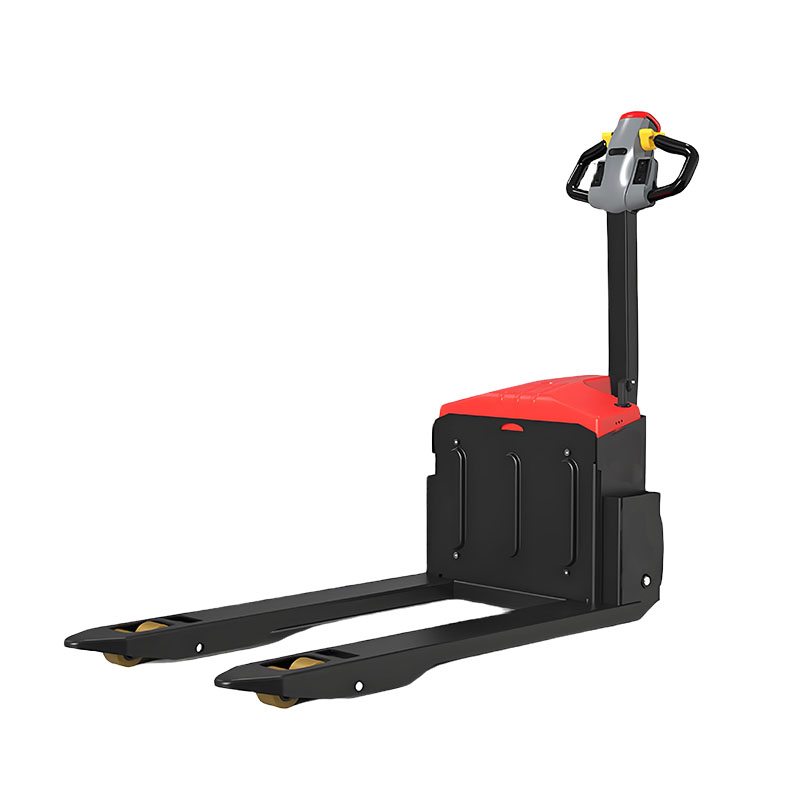

Our 1.5–2.0 Ton Electric Pallet Truck is a reliable solution for pallet handling in warehouses, logistics centers, supermarkets, and manufacturing facilities.
With electric lifting and electric driving, it greatly reduces manual labor, increases efficiency, and ensures smooth operations even in narrow aisles.

电动托盘搬运车 1.5–2.0 吨 是现代仓储和物流搬运的理想选择。该设备配备 电动起升与电动行走系统,大幅降低人工劳动强度,提升作业效率,在 狭窄通道 和高频率搬运场景中表现尤为出色。

2. Key Advantages

  • Long-lasting Battery – 48V system ensures reliable operation with reduced downtime.
  • Electric Driving (电动行走) – Reduces manual pushing, ensuring effortless pallet transport.
  • Electric Lifting (电动起升) – Smooth and stable lifting, suitable for heavy-duty operations.
  • High Load Capacity – Handles up to 2,000 kg, meeting diverse warehouse needs.
  • Compact Design – Small turning radius, perfect for warehouse logistics and narrow spaces.
  • Durable PU Wheels – Wear-resistant, low noise, suitable for both indoor warehouses and retail environments.

3. Related Products

产品参数表 (Specification 参数表)

Parameter (参数) Value Unit
Operation form 操作方式 Walk 步行式
Load capacity 载重能力 2000 kg
Load center distance 载荷中心距 600 mm
Wheelbase 轴距 1260 mm
Lifting height 起升高度 195 mm
Lowered fork height 最低货叉高度 80 mm
Overall length 总长 1690 mm
Overall width 总宽 685 mm
Fork size 货叉尺寸 (s/e/l) 50×150×1210 mm
Fork outer width 货叉外宽 550/685 mm
Min. lowered fork height 最低放下货叉高度 30 mm
Aisle width for pallet (1000×1200) 通道宽度 1900 mm
Aisle width for pallet (800×1200) 通道宽度 1955 mm
Turning radius 转弯半径 1470 mm
Service weight (with battery) 整车重量 (含电瓶) 220 kg
Tyre type 轮胎类型 PU 聚氨酯
Tyre size – Drive wheel 驱动轮尺寸 210×70 mm
Tyre size – Front wheel 前轮尺寸 80×60 mm
Travel speed (laden/unladen) 行驶速度 (满载/空载) 4/5 mm/s
Lifting speed (laden/unladen) 升降速度 (满载/空载) 27/40 mm/s
Decline speed (laden/unladen) 下坡速度 (满载/空载) 42/38 %
Max. gradeability (laden/unladen) 最大爬坡度 (满载/空载) 6/20 %
Drive motor 驱动电机功率 1.0 kW
Lift motor 起升电机功率 0.8 kW
Battery voltage/capacity 电瓶电压/容量 48/32 V/Ah
