Electric Scaffolding | Mobile Aerial Work Platform for Construction, Warehouses, and Maintenance

Applications
  • Construction Sites 建筑工地 – High-rise operations such as plastering, painting, and installation.

  • Factories & Workshops 工厂与车间 – Equipment installation, repair, and maintenance.

  • Warehouses 仓库 – Inventory management and overhead system maintenance.

  • Public Facilities 公共设施 – Cleaning, lighting, and decoration of large venues.

电动脚手架广泛应用于 建筑工地、工厂车间、仓库及公共设施 等场景,是高空作业的理想选择。

  • Lifting Height 升高高度 – Available from 2m to 12m.

  • Load Capacity 载重能力 – Standard 500kg, customizable if required.

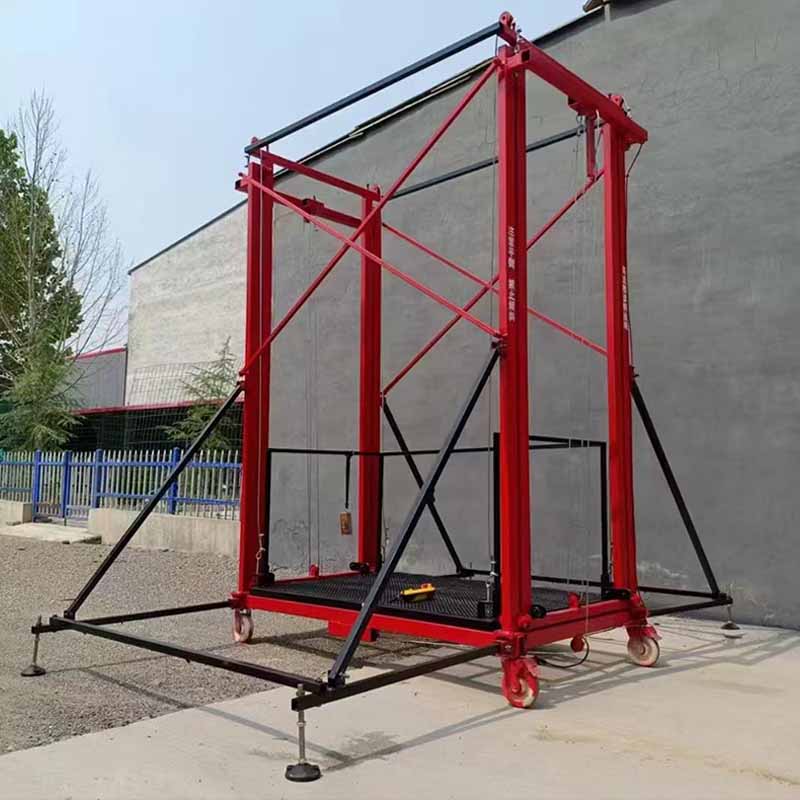

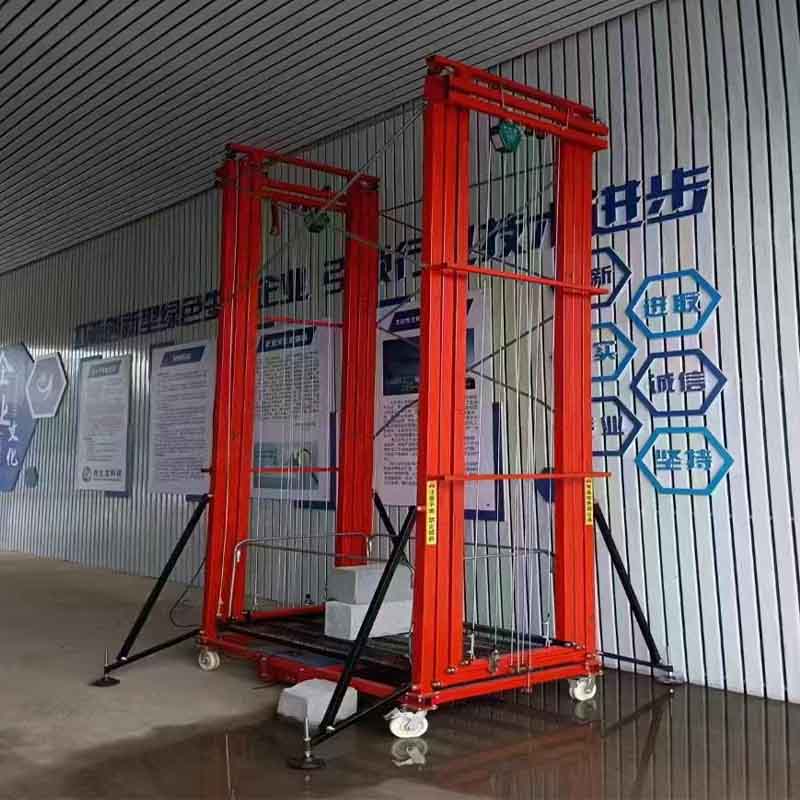

  • Frame Design 门架结构 – Two-section (2–6m) or three-section (7–12m).

  • Safety Devices 安全装置 – Optional fall protection system.

  • Dimensions 尺寸 – Adjustable frame width according to site needs.

支持多种 定制化选项,包括 升高高度、载重能力、门架结构、安全装置和尺寸,满足不同客户的需求。

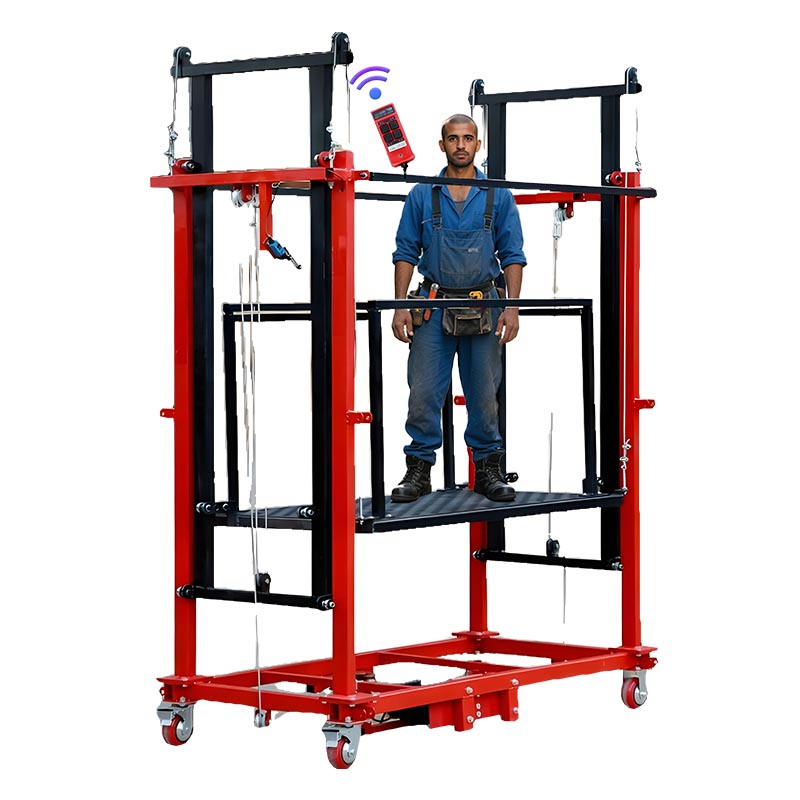

1. Product Introduction

The Electric Scaffolding is designed for safe and efficient elevated operations in construction sites, factories, warehouses, and maintenance projects. With a lifting height of up to 12 meters and a 500 kg load capacity, it provides a reliable solution for working at height.

电动脚手架 专为建筑工地、工厂、仓库及维修工程的高空作业而设计,最大升高可达 12米,承载能力 500公斤,为高空作业提供安全高效的解决方案。

2. Key Advantages

Flexible Use 灵活应用 – Suitable for both indoor and outdoor elevated work.Heavy Loads

  • Wide Height Range 高度范围广 – Adjustable lifting height from 2m to 12m.
  • Strong Load Capacity 强承载力 – Maximum load of 500 kg, suitable for two workers with tools.
  • Safe Design 安全设计 – Models above 9m equipped with fall protection system.
  • Compact Size 紧凑尺寸 – Fits standard workspaces, easy to move and install.
  • Stable Structure 稳固结构 – 2–6m models with two-section frames, 7–12m with three-section frames.

3. Related Products

Height (升高高度) Load Capacity (载重能力) Dimensions (外形尺寸) Frame Structure (门架结构) Safety Device (安全装置)
2m 500kg 1.8m × 0.8m Two-section No support legs
3m 500kg 1.8m × 0.8m Two-section No support legs
4m 500kg 1.8m × 0.8m Two-section No support legs
5m 500kg 1.8m × 0.8m Two-section With support legs
6m 500kg 1.8m × 0.8m Two-section With support legs
7m 500kg 1.8m × 1.0m Three-section With support legs
8m 500kg 1.8m × 1.0m Three-section With support legs
9m 500kg 1.8m × 1.0m Three-section With fall protection
10m 500kg 1.8m × 1.0m Three-section With fall protection
11m 500kg 1.8m × 1.0m Three-section With fall protection
12m 500kg 1.8m × 1.0m Three-section With fall protection
